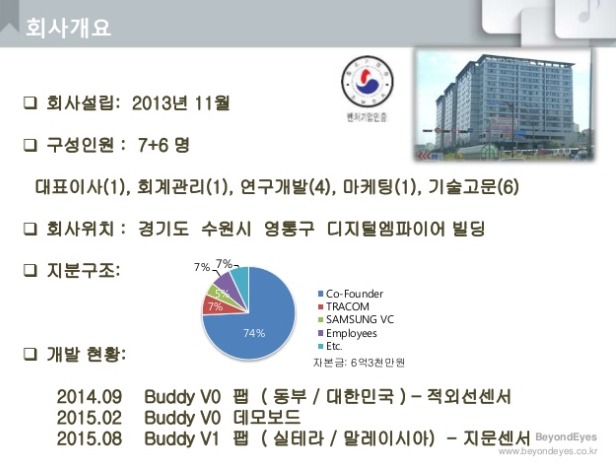

슈프리마의 지분투자를 받은 것으로 알려짐
World's thinnest optical fingerprint sensor targeting at 1.0mm thickness
with the highest resolution

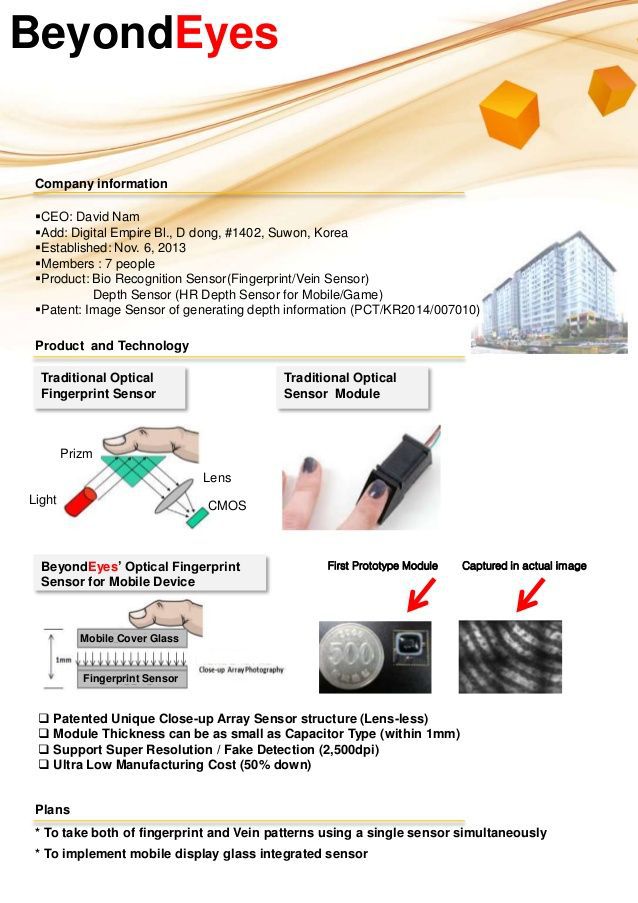

Conventional optical fingerprint sensor has been widely using in many places such as entrance security, door lock and immigration registration system etc. for a long time as it is believed more reliable than capacitive type fingerprint sensor which has been recently using in mobile devices for personal authentication. Since conventional optical fingerprint sensor has bigger size, it is hard to be squeezed into mobile devices like smart phone and tablet PC, because it needs optical structures such as outside optic lens and bulky prism as well as lens' focal length.
Compares to conventional optical fingerprint sensor, conventional capacitive type fingerprint sensor is relatively thinner, so it is considered for mobile device but it cannot be worked well under general thickness of cover glass and it also always requires metal ring, sapphire glass and even home button. Meaning it gets in the way of people having new smart phone with new design, and in addition, current fingerprint sensor solution is pretty much vulnerable to fake fingerprint, which could be an critical problem for mobile payment.
To solve all of these issues, we have developed world's thinnest new optical type of fingerprint sensor with 2500dpi resolution as a first solution with the name of BeyondEyes.

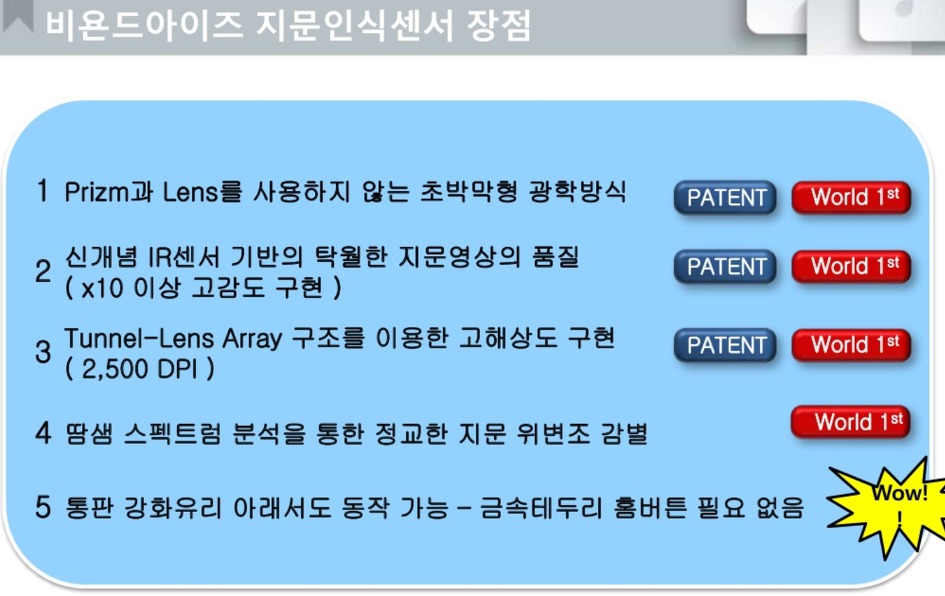

Features

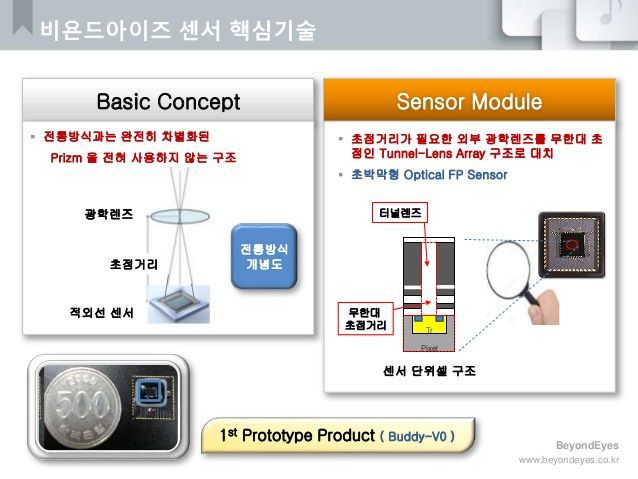

Ultra Thin Optical Method without using Prizm&Lens
Remove outside optic lens which requires focal length and replace with unlimited focal point tunnel-Lens Array
High Resolution Tunnel-Lens Array

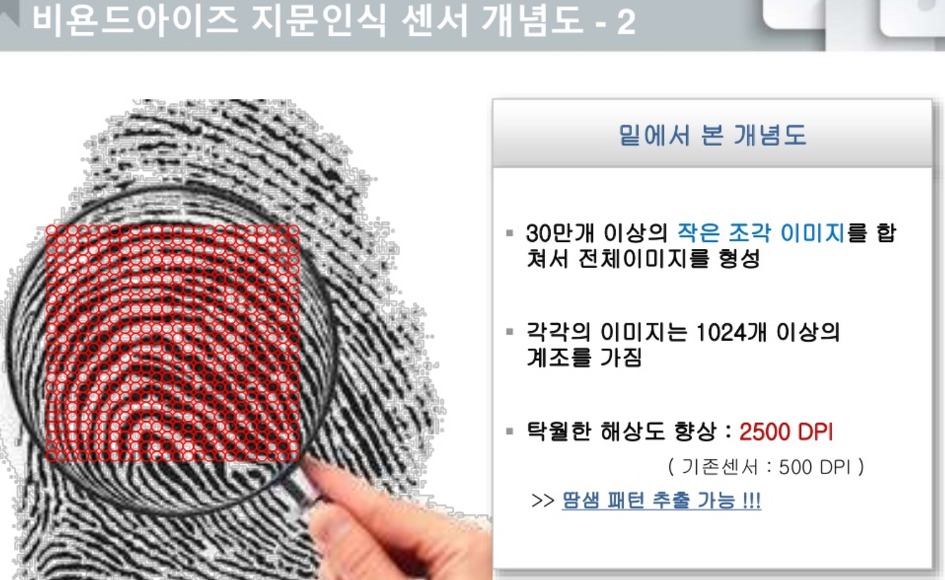

Highest resolution with 2500dpi, 5 times better

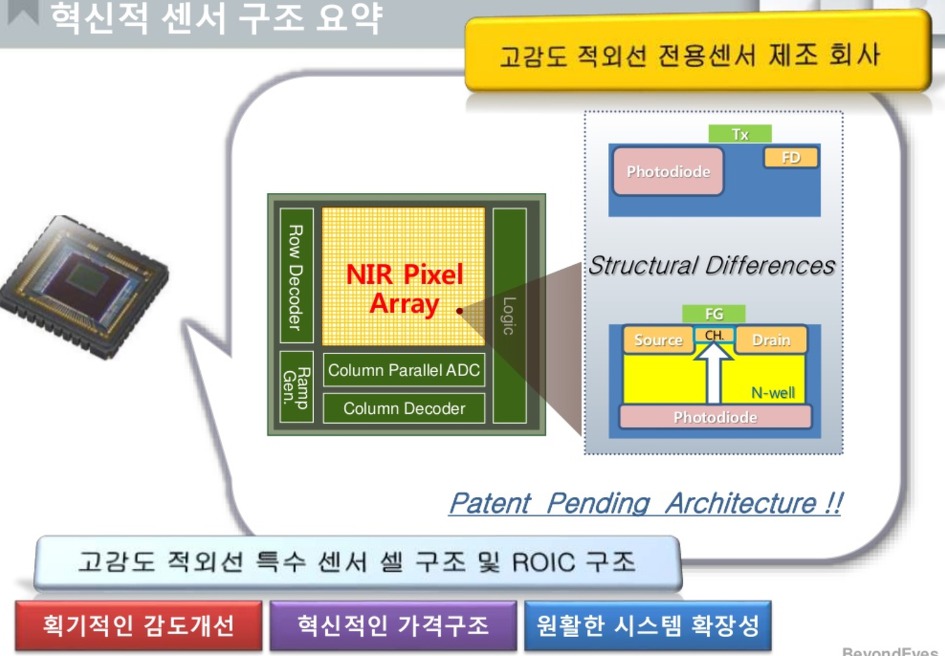

High Sensitivity Unique IR Sensor
( Over x10 Times Sensitivity )

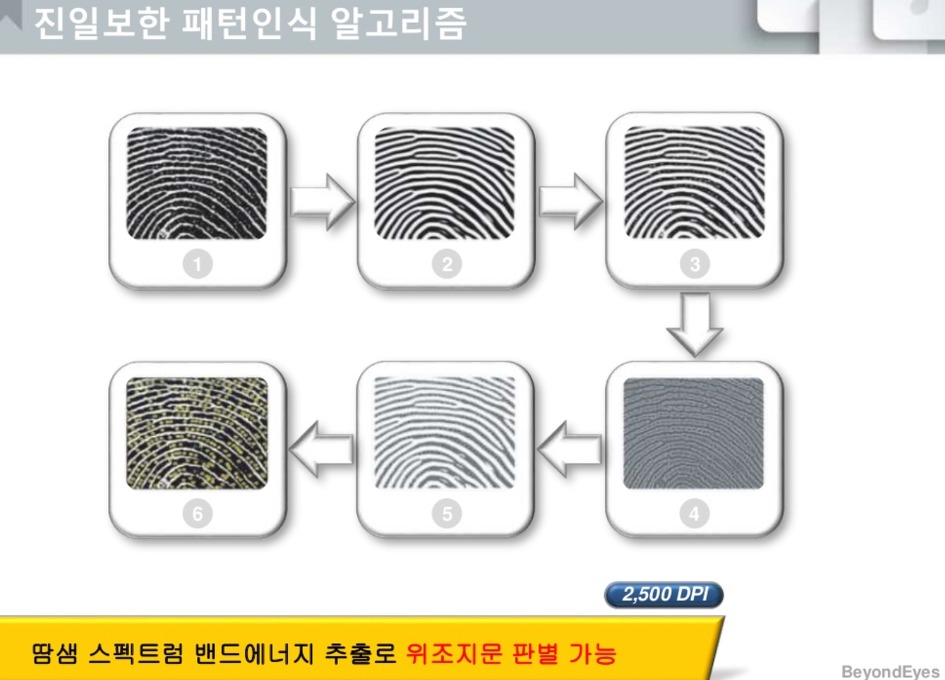

Fake Fingerprint Recognition Algorithm by analyzing high resolution Sweat Pore Spectrum.
BeyondEyes' anti-spoofing fingerprint sensor can even detect sweat pores on the fingerprint by analyzing spectrum energy band so that it can figure out fake fingerprint.
Works well under general thickness of cover glass
No need sapphire or expensive high conductive glass, metal ring and physical home button on smart phone
참조자료
p.s
IR센서를 이용한 것이 다른 업체와 구별되는 솔루션에 점수를 줍니다. 다른 업체 대비 모듈 크기가 엄청 작네요.

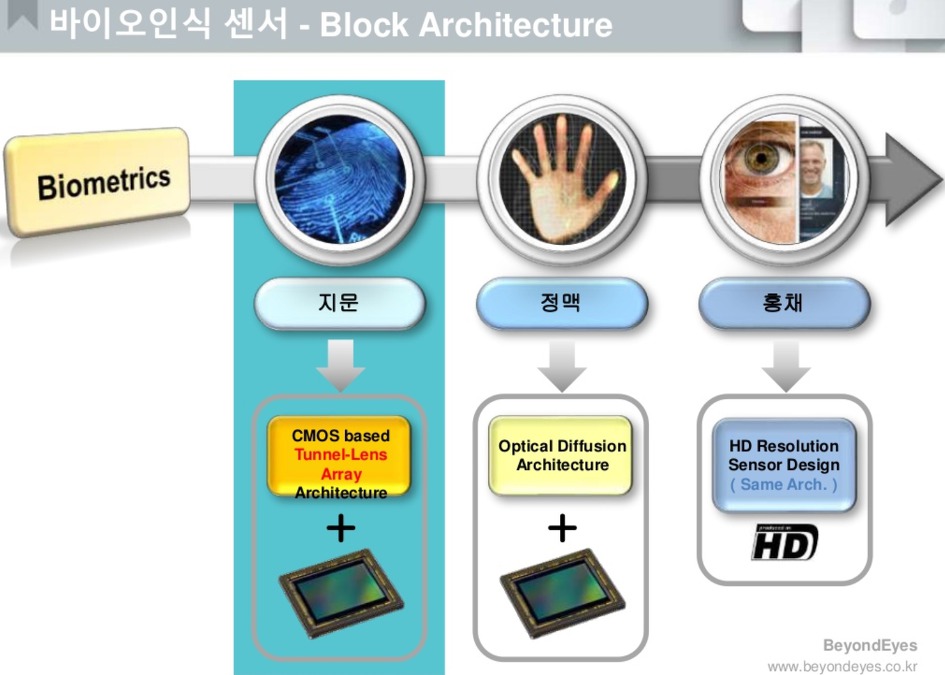

IR센서를 이용하니 880nm파장을 이용하면 정맥 혈류 인식이 가능해서 위조지문 판별도 용이할 것으로 보임.
요새 인기있는 TOF(Time of Flight)도 IR을 이용하므로 홍채인식에도 도전...하나의 상품으로 다목적 이용하는데도 점수 줍니다.
첫번째 고객을 뚫는데 성공하기를 응원하고 싶네요.
-->밍치궈가 노트9에 BeyondEyes, 삼성SLI 지문센서 탑재가 유력하고 EgisTech도 후보나 Synaptics는 탈락했다고 언급한 바 있음.
-->노트9에는 위이 UD광학식 센서가 아닌 기존 정전용량방식-Passive CMOS EgisTech센서 탑재가 된 바 있음.
픽셀마다 이미지센서를 이용하는 타 업체대비 IR센서를 이용하는 것이 더 싼가 ? 원가/비용 절감 효과
픽셀마다 터널-튜브+렌즈(카메라 방법과 동일)를 이용하는 것도 다른업체 장점을 모두 수용했고 IR센서를 이용하니
가장 중요한 촛점과 투과성능에 전혀 문제가 없다.(업체는 무한대로 주장했지만)
구글 호환성 정책 SAR 7%이하 가이드라인 지원으로 위조지문판별에서 기존 IR/빛 센서 추가 방식보다 제조사에게 매력적이다.
-->땀샘을 감지하는 기술은 SAR 7%이하로 가는 첩경으로 판단한다.

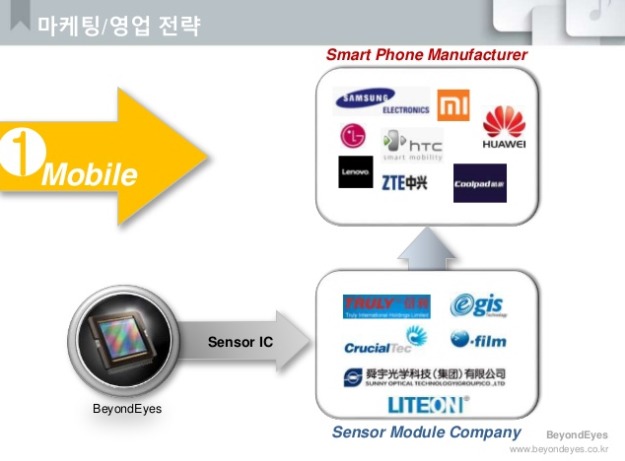

다만, 마케팅/영업전략에서 오래된 지난 자료를 보고 있는 것으로 보인다.
-->첫번째가 모바일 분야에서 제조사를 제외하고 모듈사를 타겟으로 하는 것은 맞는데 동종 팹리스업체를 공략하는 것은 그다지 성과가 없을 것이 확실하고 모듈사는 중국 O-film, Q-Tech, PriMax, Truly Optics, Holitech과 국내 드림텍, 엠씨넥스, 파트론, 크루셜텍이 될 것이다. 모듈사도 기존에 공급하던 다양한 센서가 있는데 BeyondEyes가 분명 장점과 매력은 있지만 그들에게 이익을 줄 수 있는 것이 적다. 이미 시장은 대화면지문인식을 제외하고 센서 0.7~0.8$로 떨어지고 모듈도 2$이하인 1.6$근처에 있는 레드오션이기 때문이다. 위조지문 판별기술이 제조사에게 Hot Issue가 되지 못하는 실정이다.
그럼, 현재 대화면디스플레이에 탑재되는 퀄컴 초음파센서와 Goodix/Silead/Synaptics/EgisTech 광학식 센서를 누를 수 있는 기술을 제공하는 것인데 역시 매력적이긴 한데 현재 시장에 알려지지 않은 햇빛에 드러나는 문제나 가격인 초기 12~15$에서 Goodix 10~12$, Silead 8~9$보다 싸고 모듈 제작비용이 싸면서 위조지문 판별도 되는 것도 1회전을 마치면 바로 시장과 제조사는 전화면 지문인식에 대한 솔루션이 있는가 ?로 모아질 것으로 본다. 안정적인 공급망 ?
-->기술적 우위, 모듈 제조비용 저렴, 위조판별 쉬움으로 제조사를 설득시킬 수 있다 ?
-->1$이하 지문센서와 1.6~1.7$ 후면 위주의 모듈시장을 얼마나 대체할 수 있을까 ?
-->중국 중저가 모델이 많은데 첫 제조업체 레퍼런스 확보가 모든 것의 첫걸음. 이는 크루셜텍이 자회사 CanvasBio에서 개발된 CB2000을 중국 중저가 스마트폰 제조업체를 공략하는 이유와 같다. 아프리카, 남미, 인도네시아등 각 나라별 로컬 스마트폰 업체 공략도 병행할 것으로 예상.

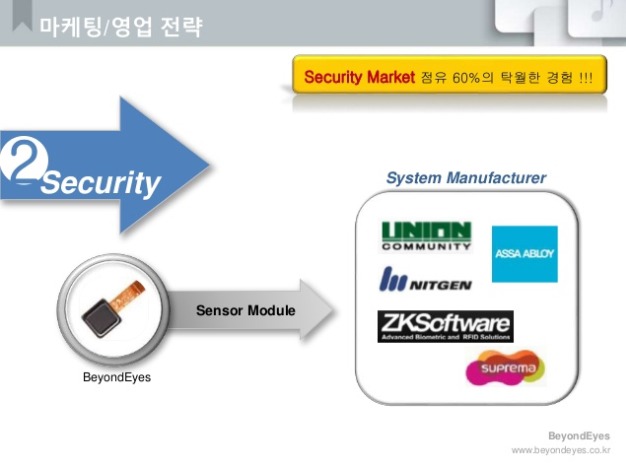

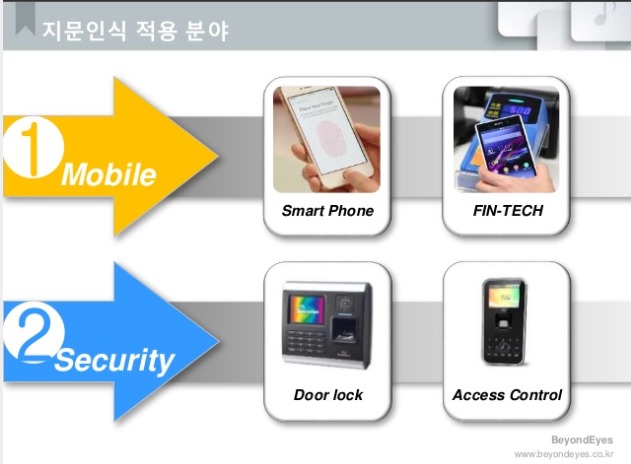

-->두번째는 입출입 통제관리/기업 시장에서 슈프리마, 니트젠, 도어락 시장에서 ASSA ABLOY 타겟은 맞는데 지분투자한 슈프리마를 포함하여 역시 성과를 기대하기 어려워 보인다. 슈프리마는 이미 플랫폼화 되어 각종 솔루션회사에 공급되는 구조인데 이 시장은 H/W, SW, 네트웍, 서버가 플랫폼화된 구조라 단순히 Sensor IC만을 교체하는 것은 매력적이지 못하다. 기존 센서 교체시장만을 보고 접근한다 ?
홍채인식에서 Critical Sucess Factor가 무엇일까 ? 시장을 추적하고 오랫동안 고민해 보지 않아 잘모르겠다. 다만, 스마트폰 시장에서는 홍채인식보다 지문인식과 얼굴인식이 더 사용자 친화적으로 보인다는 것은 확실하다.
자동차 전장시장에서 사용자 인식을 해야하기 때문에 터치(사용자가 목적과 의도를 가지고)와 더불어 비접촉식으로 홍채인식과 얼굴인식이 사용자가 인지못하는 가운데 자동으로 인식해야한 것이 필요하다고 해서 컨셉카나 자율주행, 빠르면 전기차에 적용되는데 매우 느리게 움직이는 시장 특성상 오랫동안 협업해야 하는 단점이 있는 것으로 보인다.
기존 업체와 마찬가지로 가장 큰 위협은 디스플레이 패널업체가 OLED Stack내에 IR Sensor와 Photo diode를 픽셀마다 넣은 것으로 판단. 삼성과 같이 Pinhole photomask, Photo-diode를 이용할 수도 있고 다양한 방법이 있을 것이다. 애플도 이와 관련되어 여러가지 방법을 특허로 등록해두었다.
-->삼성은 삼성 시스템LSI, LG는 실리콘 웍스에서 T-CON(TV용), DDIC, Touch IC를 담당하는데 지문인식도 여기서 담당할 확율이 매우 크다. 특히, 전(Full-screen) 화면으로 가면서 이것은 더 확율이 높다.
고급모델에서 주류가 된 화면지문인식 센서 주요 공급업체와 후보
-->화면 일부 지문인식 1회전이 끝나면, 시장의 관심은 전(Full-screen)화면 지문인식일 것이다.
FoD(Fingerprint on Display), Under-Display/In-Display Solutions
1. Commercialization -Qualcomm: Ultrasonic-3rd generation -Goodix: CIS(Camera Image Sensor) + Micro tube -Synaptics: CIS + Micro tube(Micro tunnel) -Silead: CIS + Micro lens 2. Candidates -Egistec: CIS + Micro pinhole, Nokia 9 Pureview will have FOD from Egistec.
-Samsung SystemLSI: CIS + Micro lens & Ultrasonic sensor for SamsungElec. MI division (Samsung SystemLSI is also developing the CMOS capacitive sensor with Fan-out packaging) -CrucialTec: TFT+Capacitive for Galaxy F(foldable phone) 3. Under development & Trial test -FPC: Ultrasonic & TFT + Optical -FocalTech: Optical -BeyondEyes: IR Sensor with tunnel/lens array, support both fingerprint and vein recog., highest resolution with 2500dpi, can transmit over 1~1.2mm thickness -CrucialTec: Transparent TFT + Capacitive(COG/COF patterned with transparent hybrid materials)/Optical, support LCD panel -Holst Centre: Optical sensor made with organic photodetectors, co-developed with isorg -Keycore: Capacitive(COG/COF type), can transmit 0.55mm thickness, support LCD panel -Silead: Ultrasonic(30MHz CMEMS process) 4.Panel companies -Samsung Display: Using pinhole photomask and photo-diode -LG Display: It is called DFS(Display Fingerprint Solution) and will soon be completed. -VkanSee with BOE: TFT + Optical -JDI: TFT + Capacitive, support LCD panel
