삼성전자 차기 스마트폰에 들어갈 '디스플레이 지문인식' 서플라이체인이 최종 윤곽을 드러냈다. 갤럭시S 시리즈에 퀄컴 초음파 센서가 일찌감치 선정된 데 이어 갤럭시A 시리즈에는 대만 이지스테크놀로지의 광학식 센서가 낙점 받았다. 디스플레이 지문인식은 스마트폰 화면 위에서 지문을 인식해 사용자 본인 여부를 판별할 수 있는 기술이다. 풀스크린 스마트폰 구현에 필수로 평가돼 삼성전자가 새롭게 도입을 추진하고 있다.
22일 업계에 따르면 삼성전자는 내년 출시 예정인 갤럭시A 시리즈에 대만 이지스테크놀로지의 디스플레이 지문인식 센서를 도입한다. 삼성은 중국 구딕스와 이지스테크놀로지를 놓고 막판까지 고심을 거듭하다가 이지스테크놀로지를 최종 낙점했다. 복수 업계 관계자는 “구딕스와 이지스테크놀로지가 경합을 벌였는데, 이지스가 파격적인 조건을 제시해 계약을 따냈다”고 전했다.
이지스테크놀로지는 지문인식 센서 전문 업체다. A5·C7·ON7과 같은 삼성전자의 중·저가 스마트폰부터 지문인식 센서를 공급하다 올해는 삼성 플래그십 모델인 갤럭시S9에도 센서를 납품했다. 기존 메인 공급사이던 미국 시냅틱스를 이지스테크놀로지가 밀어내는 양상을 보였다. 이지스테크놀로지는 기존 버튼 형태의 지문인식 센서에 이어 디스플레이 지문인식 센서까지 공급을 성사시키는 성과를 거둔 것으로 평가된다.
디스플레이 지문인식은 기존 지문인식과는 완전히 다른 기술이다. 기존에는 스마트폰 하단이나 후면에 별도의 버튼을 통해 지문인식이 이뤄졌다. 그러나 디스플레이 지문인식은 디스플레이 뒷면에 센서가 배치돼 겉으로 드러나는 게 일체 없다. 디스플레이 뒷면 센서가 디스플레이 앞면, 즉 화면 위에 닿은 지문을 인식한다. 디스플레이를 뚫고 지문의 모양을 파악해야 하기 때문에 상당한 센싱 능력이 요구되는데, 이지스테크놀로지는 광학방식 센서를 자체 개발하고 디스플레이 지문인식을 구현한 것으로 알려졌다.
삼성이 갤럭시A 시리즈에 이지스테크놀로지의 센서를 도입키로 결정하면서 이제 삼성 디스플레이 지문인식 서플라이체인은 완성된 모습이다.
앞서 삼성은 갤럭시S10 상위 2개 모델에 미국 퀄컴의 초음파 방식 디스플레이 지문인식 센서를 탑재하기로 확정한 바 있다. <본지 2018년 5월 31일자 1면 참조>
이에 따라 신형 갤럭시S 시리즈 디스플레이 지문인식 센서는 퀄컴이, 차기 갤럭시A 디스플레이 지문인식 센서는 이지스테크놀로지이 각각 맡는 것으로 정리됐다.
센서를 스마트폰에 장착하기 위해서는 모듈로 만드는 과정이 필요하다. 이 모듈화 작업은 퀄컴 센서의 경우 중국 스마트폰 부품 업체인 오필름이, 이지스텍 센서 모듈화는 국내 엠씨넥스, 파트론 등이 맡는 것으로 알려졌다.
삼성전자는 갤럭시S10에서 홍채인식을 뺄 계획이다. 내년 삼성 스마트폰에서 메인이 될 생체인식 기술은 지문인식, 특히 디스플레이 지문인식이 핵심으로 부각될 전망이다.
p.s
이미 전해드린 내용이라 특별한 것은 없습니다.
다만, 기사내용중 EgisTec 자체센서는 대만 HiMax센서로 수정되야 합니다.
파격적인 조건은 가격을 말하는 것이며 가격은 Goodix 4~5$에 맞추기 위해 EgisTec도 센서크기를 대폭 낮추고 자체센서에서 HiMax로 교체했다고 함(EgisTec뒤에 HiMax 존재도 이미 알려드린 바 있음).
--->12월 13일, 업계에 확인한 바를 전해드리면 EgisTec은 1.5mm x 1.5mm 크기의 자체센서를 개발하여 삼성에서 앞서있던 Goodix에 역전하며 수주하였다고 전해짐.
--->밍치궈 언급 Update

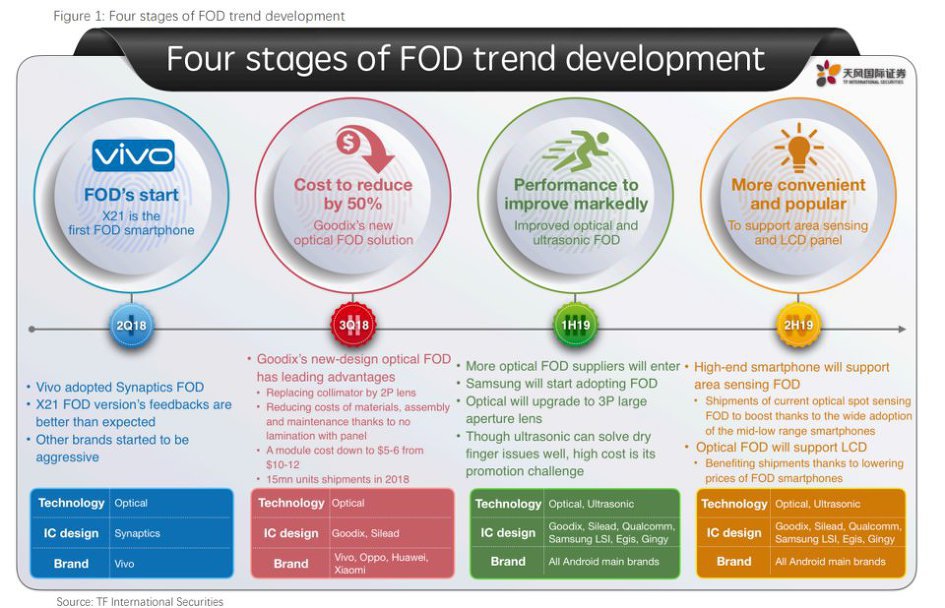

Guo Minghao estimates that the price of optical fingerprints provided by Aegis to Samsung's new A series models in the first half of next year is 2.5-3.5 US dollars, which is significantly lower than the US$5–6 of the top and the market consensus of US$4–6.
삼성이 내년에도 올해 약 2억 9500만대 출하량 수준에 그친다고 가정할 시
갤럭시 S시리즈, 노트시리즈 5천~6천만대,
갤럭시 A시리즈중 광학식 지문센서 탑재모델은 2천~3천만대 수준.
TF Securities의 밍치궈는 EgisTec이 삼성에 납품할 수 있었던 주 요인으로
The Aegis can supply Samsung early, and Guo Mingqi owes the reason to improving the yield of optical fingerprint recognition. The reason can feel good product yield, first and foremost to their own design image sensor to replace Himax sensor, which is not only beneficial vertical integration, but also save development time and cost. Secondly, replacing the Micro-lens/optical MEMS design with a lens is beneficial to the improvement of production yield and cost. Finally, the lens is upgraded from 2P to 3P, and the aperture is improved from F1.4 to F1.2, which improves the contrast and improves the recognition rate.
기존 TF Securities 밍치궈의 삼성전자 지문인식 예상:
http://blog.daum.net/serapeum/7594821
http://blog.daum.net/serapeum/7594774
모듈사 언급은 특별한 것이 없으며 더 늘어날 것으로 보이며 엠씨넥스는 삼성전자 자체 카메라 모듈 생산장비(지문센서 모듈장비는 어느 업체가 구매 ??)를 구매하여 혜택을 받은 것으로 보임.
내년초 상장 예정으로 알려진 드림텍은 지문센서 모듈사업에서 2015년 202억원에서 지난해 2371억원으로 매출이 껑충 뛰었다.
국내 1위업체는 이미 크루셜텍이 아니다. 유니퀘스트/드림텍은 벤처기업 지분투자를 한 기업이 있는데 그중에 2개 기업은 앞으로 가능성이 있어 보인다.

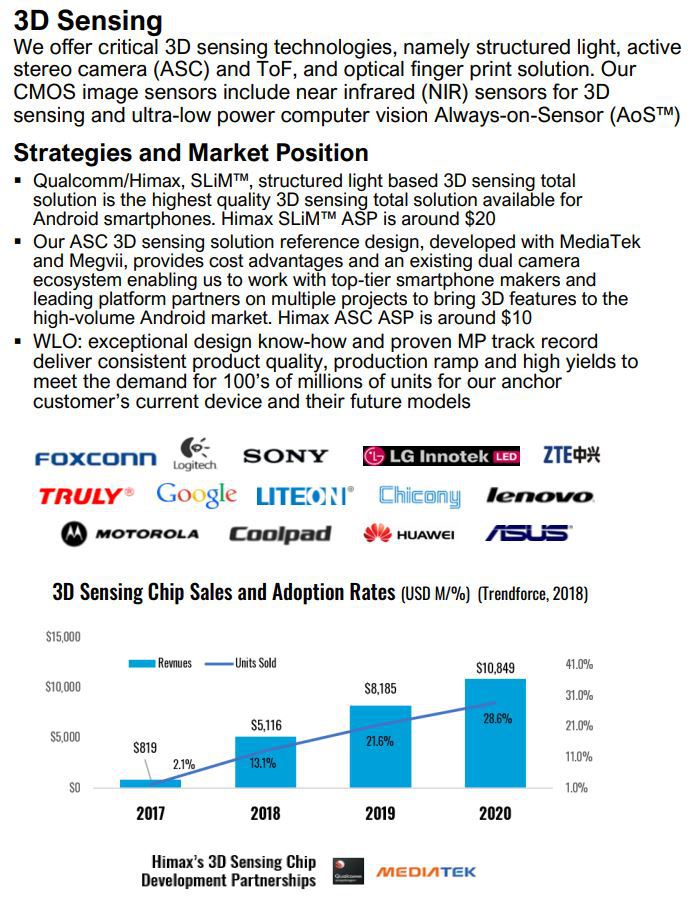

Himax Fact Sheet has the company's forecast on 3D imaging product sales:
Himax Compares Smartphone ID Solutions, 3D Sensing
Himax quaterly earnings report presents the company's vision of 3D sensing market:
"Leading Android smartphone makers are exploring various 3D sensing technologies, namely structured light, active stereo camera (ASC) and, to a lesser extent, time-of-flight (ToF), trying to strike a good balance of cost, specifications and application. More software players are entering the ecosystem to develop 3D sensing applications beyond the existing applications, namely facial recognition, online payment and camera performance enhancement.
Himax has been working with an industry leading fingerprint solution provider to develop an under-display optical fingerprint product in the last two years, targeting smartphones using OLED displays. Himax provides a customized low-power image sensor in the solution. The Company is pleased to announce that the solution has entered into mass production with a major Android smartphone OEM for their new flagship model with shipment expected in the coming months. The CMOS image sensor used in the solution will have a notably higher ASP than the Company’s traditional display driver IC products."
SeekingAlpha: In Q&A session, Himax CEO Jordan Wu gives more details anout its optical fingerprint business:
"It appears to be to enjoy pretty good momentum right now in the Android market. Okay, because of cost issue. The business can change overnight in how they are, firstly, the cost, I’m talking about the total solution, which includes most importantly the CMOS image sensor, and as I said optics and certainly algorithm chip combined at the module. Initially, when the technology was promoted, we’re talking about $10 in total, but now, we are seeing $10 plus in total.
Now, we’re seeing the total cost is now coming down to $10 or even below. And because of certain cost saving measures adopted by module houses, in particular, in the optics side. So for that reason, again, customers want full screen design and they don’t want their capacity touch to be on the back, which is not convenient to use. So for full screen design, if you feel structured light too expensive, ToF is also quite expensive and even ASC is relatively expensive because ASC now, we’re still talking about $10 plus and this thing, fingerprint is already below $10.
So for that reason, it seems to be picking up momentum. However, I will have to say that the limitation of fingerprint is that it can do nothing out of the fingerprint, whether it’s all three kinds of 3D sensing, you can have a lot of other applications beyond unlocking your smartphone and payment. Right. So I think that is the most important thing. And certainly, under glass fingerprint, one reason why it is getting traction by it, it is not really becoming overwhelming. one of the issues is it still suffers from its lesser satisfactory accuracy, meaning when you try to unlock your phone, the failure rate still is too high. And when it fails, you have to – the user will have to key in the password, which people hate, right.
So in comparison, 3D sensing or face authentication, the accuracy level is a lot higher. And so they are certainly a big wildcard will be our first launch in expected September, right, in the new phones, whether they can introduce interesting attractive new features, application to 3D sensing. But I think it is still slightly too early to tell who is going to dominate which segment of the market as of today."
